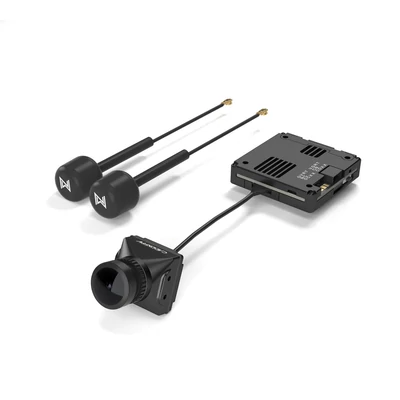

Walksnail Avatar HD Pro Kit (Dual Antennas Version)

Ár:
72.490 Ft
Gyártó:
Walksnail
Cikkszám: WN08-6S14B
Kívánságlistára teszem
Menny.:db
Értesítés
Leírás Csomag tartalma Vélemények

Leírás

features：

  • Dual Antennas
  • Compatible 4K
  • FOV160°
  • 6V-25.2V
  • 4km range
  • 22ms low latency
  • Built-in 32G storage
  • High frame starlight
  • 1080P 120fps compatibility
  • Sony Starvis Ⅱ Technology

Bullet Points for Avatar HD Pro kit (Dual Antennas)

  • The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency. Support 1080P/60FPS, 720P/120FPS.
  • Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

  • The camera supports Gyroflow, take you smooth and stable video quality.
  • The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
  • Updated the design of PCB board and shell, improved the quality of VTX, more durable.
  • Optimized the installation place of the antenna, so as to better protect the VTX.
  • The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
  • A spare pad is added to provide two power connection modes.

  • New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

  • The Avatar VTX comes with 32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.

  • It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

  • Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

Specification
The room
Model Avatar HD Pro Camera
Image Sensor 1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution 1080P/60fps; 720P/120fps, 720P/60fps; 1080P/120fps compatibility;
Ratio 16/9; 4/3
Lens 8Mp
FOV 160°
Aperture F1.6
Shutter Rolling shutter
Min.Illumination 0.00001Lux
Weight 9.5g
Dimensions 19*19*24mm
Coaxial Cable 140mm
VTX
Model Avatar V2 Pro Module(Dual Antenna)
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; LOW: <25dBm
1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes 25.5*25.5mm; 20*20mm
Dimensions 33.5*33.5*10.5mm
Storage 32G
Recording 1080p/720p
Weight 15.4g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 6V-25.2V
Supported FC System Betaflight; Inv; Fettec; ArduPilot; Kiss
OSD Canvas mode
Latency Average delay 22ms
Antenna 2 (IPEX)
Avatar V2 Antenna
Polarization LHCP
Frequency range 5600MHz-6000MHz
Gain 1.9dBi
VSWR ≤1.5
Input Impedance 50Ω
IPEX-1 interface
Size R15 X 45mm (without cable)
Weight 2g

Csomag tartalma

USB transfer extension cable X1
4 Pin silicone cable X1
M2*4mm screws X8
M2*5mm screws X4
M2*6mm screws X4
M2*14mm screws X4
M2*5*0.5mm gasket X4
