ToolKitRC WM150 Watt and power meter

Ár:
9.590 Ft
8.490 Ft
Kedvezmény: 1.100 Ft
Kedvezmény: 11%
Gyártó:
Cikkszám: ToolKitRC WM150

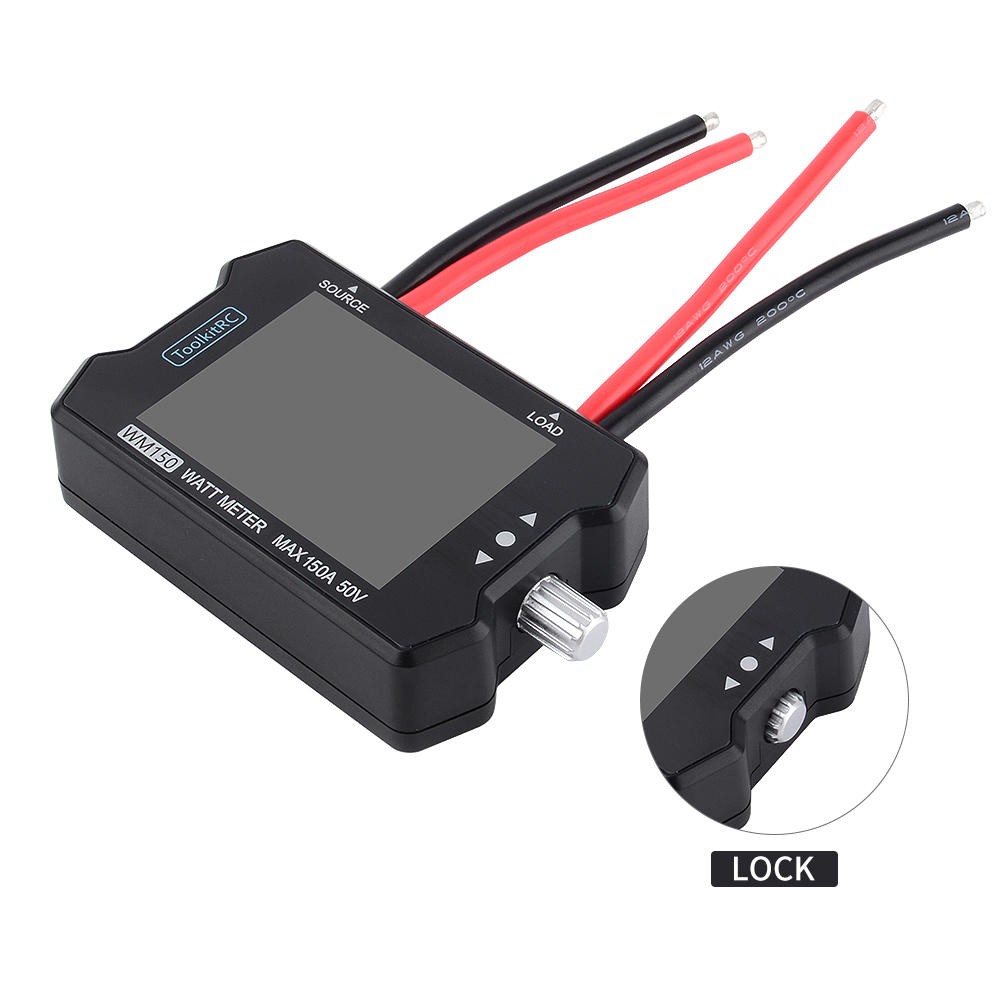

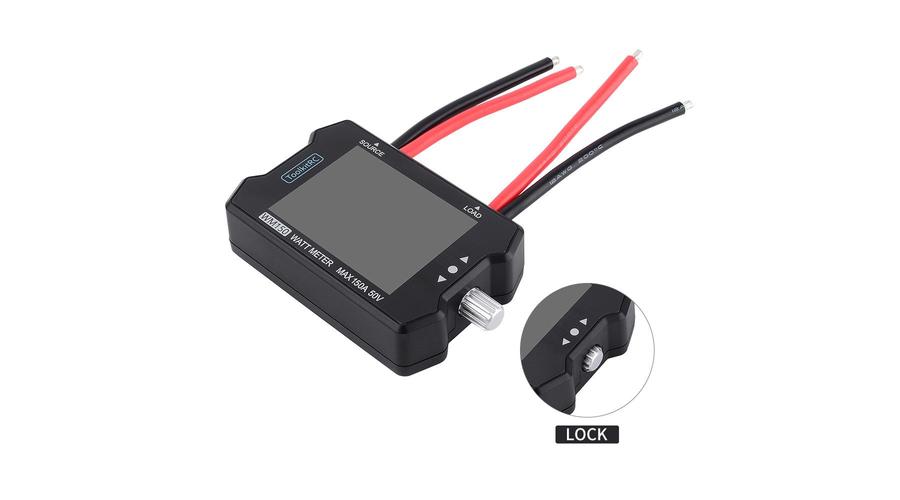

The Toolkit WM150 Watt Meter is the essential tool for all your electric flight! It features 1.0-50.V power supply, supports PWM signal and 2.4-inch color screen display.
Menny.:db

Leírás

The Toolkit WM150 Watt Meter is the essential tool for all your electric flight! It features a 1.0-50.V power supply, supports PWM signal and 2.4-inch color screen display.

Features

  • ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like a servo, ESC, battery, etc.
  • 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA.
  • Support PWM signal, 1us precision, the pulse width is changeable by adjusting the button.
  • Automatically to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-display is changed to A.
  • The wattmeter is also supporting to display working hours.
  • USB firmware update, easy to operate.

Paraméterek

Input Voltage 1-50V
Current(Max) 150A (precision:10mA)
USB 5.0V@1A ( USB3.0 firmware update)
Output PWM 1000-2000us@50Hz
Display TFT 2.4" LCD Screen(320*240 resolution)
Product Size 80*54*23mm Approx.
Packing Size 87*87*28mm Approx.
Net Weight(Approx) 120g
Gross Weight(Approx) 140g

Csomag tartalma

1 x measurer
