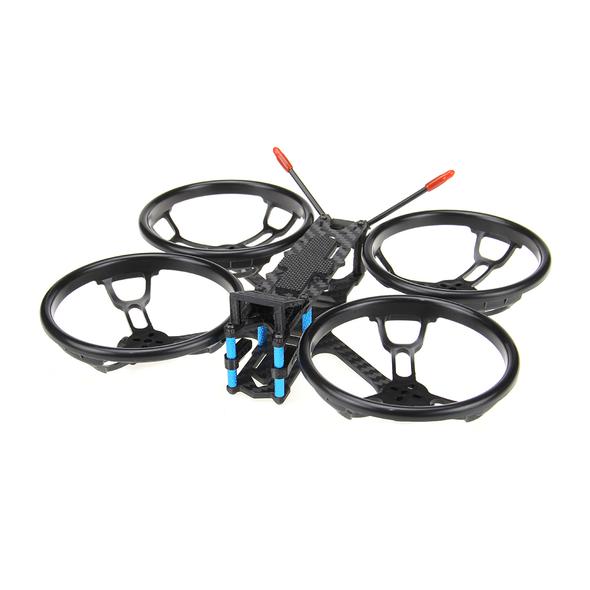

HGLRC Sector150 frame

Material:3K Carbon Fiber
Model:Sector150
Wheelbase:150mm
Type:3 Inch Freestyle Frame
Bottom Plate Thickness:3mm
Standoff Height:28mm
Flight Control Installation Holes:16X16/20X20mm
Support Camera:14X14/19X19mm
Overall Size:210*183mm
Weight:79g

Features:
TPU Gopro Mount
TPU Sector AIR UNIT
TPU Sector SMA Mount
Propeller Protective Guard
TPU Sector Camera Mount
Camera mounting size support:14X14/19x19mm
Flight control installation size support:16X16/20X20mm

Hardware:
4 x 3 Inch Propeller Protective Guard
1 x 2mm Top Plate
1 x 3mm Bottom Plate
6 x M2*28mm Aluminum Column
4 x Round head screw M2*22
4 x Round head screw M2*12
24 x Round head screw M2*7
15 x Round head screw M2*6
20 x Round head screw M2*5
8 x Damping rubber column M2X6
8 x M2 damping O-ring
12 x M2 black Relax nut
1 x Acrylic sheet 16X16
2 x Battery cable tie
1 x Battery Anti-slip tape
2 x TPU Sector Camera Mount
1 x TPU Sector SMA
1 x TPU Gopro Mount
1 x TPU Sector AIR UNIT

Recommended Parts: ( Not Included )
Flight Controller:Kiss/F4/F7 FC
Motor:1408/1306/1104/1105/1106
ESC:28A-35A
Camera:14x14/19x19mm size
Propeller:3 Inch
Battery:3S/4S(300mAh ~ 650mAh)
