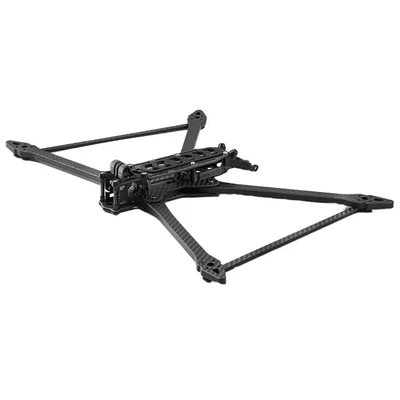

HGLRC Rekon10 Pro Long Range Frame Kit
| Gyártó: |
|
| Cikkszám: | HGLRC_REKON10_PRO_LR_FRAME |
|
|
|
Leírás
About this product
The Rekon FPV Rekon10 Pro Long Range Frame Kit is a beast designed for the most challenging long-range missions! The weight and momentum of a 10” quad give it stunningly high cruising speeds and wind resistance for high-altitude mountain dives. While it looks similar to the Rekon 7 Pro, they do not share any identical carbon parts.
Features
- 3mm thick top & bottom plates
- 8mm Carbon cut plate arms
- High cruising speeds
- Wind resistance
- Wide main body
- Long range
Specifications
- Flight controller mounting hole: 30.5x30.5mm
- Model: Rekon10 PRO Long Range Frame kit
- Top and middle plate space: 20mm
- Motor mounting hole: 1919mm
- Bottom plate thickness: 3mm
- Middle plate thickness: 2mm
- Frame protection bar: 2mm
- Camera mount: 20x20mm
- Material: 3K Carbon fiber
- Top plate thickness: 3mm
- Camera side plate: 2mm
- Wheelbase: 455mm
- Size: 476x298mm
- Front arm: 8mm
- Weight: 396.7g
- Rear arm: 8mm
- Type: 10 inch
Includes
- 1x Rekon FPV Rekon10 Pro Long Range Frame Kit
- 2x M3x30mm black mesh aluminum column
- 4x M3x20mm black mesh aluminum column
- 2x M3x18mm black mesh aluminum pillar
- 1x TPU black DJI O3 holder mount
- 1x TPU black GoPro holder mount
- 1x TPU Black DJI Air unit Block B
- 1x TPU black DJI Air unit Block A
- 8x M3x8 shock-absorption balls
- 4x M2x4 shock-absorption balls
- 1x TPU black T-antenna mount
- 1x Down Battery Anti-slip pad
- 2x battery straps 20x250mm
- 2x TPU black antenna mount
- 1x TPU black buzzer mount
- 1x TPU black GPS mount
- 4x M3 self-locking nuts
- 5x M2 self-locking nuts
- 1x M5 lock nut (red)
- 1x 3mm base plate
- 1x 2mm mid plate
- 1x 2mm mid plate
- 1x 3mm top plate
- 2x 8mm front arm
- 2x 8mm rear arm
- 2x 8mm rear arm
- 1x Hardware Set
Paraméterek
| Méretek (Hosszúság * szélesség * magasság) | 476X298 mm |
| Beépítési méret | 30,5x30,5 mm (mini) |
| stílus | Long Range |
| Súly | 369,7 g |
Csomag tartalma
1x Rekon FPV Rekon10 Pro Long Range Frame Kit
2x M3x30mm black mesh aluminum column
4x M3x20mm black mesh aluminum column
2x M3x18mm black mesh aluminum pillar
1x TPU black DJI O3 holder mount
1x TPU black GoPro holder mount
1x TPU Black DJI Air unit Block B
1x TPU black DJI Air unit Block A
8x M3x8 shock-absorption balls
4x M2x4 shock-absorption balls
1x TPU black T-antenna mount
1x Down Battery Anti-slip pad
2x battery straps 20x250mm
2x TPU black antenna mount
1x TPU black buzzer mount
1x TPU black GPS mount
4x M3 self-locking nuts
5x M2 self-locking nuts
1x M5 lock nut (red)
1x 3mm base plate
1x 2mm mid plate
1x 2mm mid plate
1x 3mm top plate
2x 8mm front arm
2x 8mm rear arm
2x 8mm rear arm
1x Hardware Set
