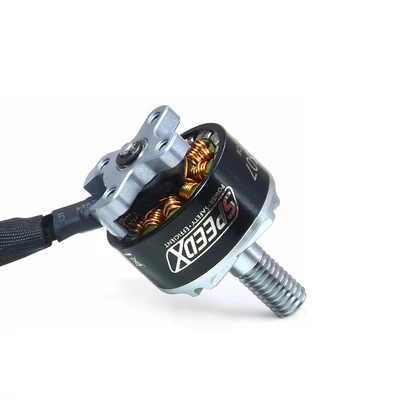

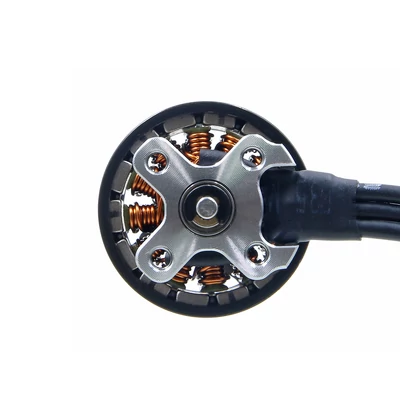

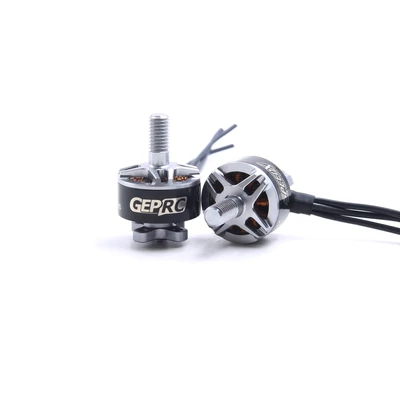

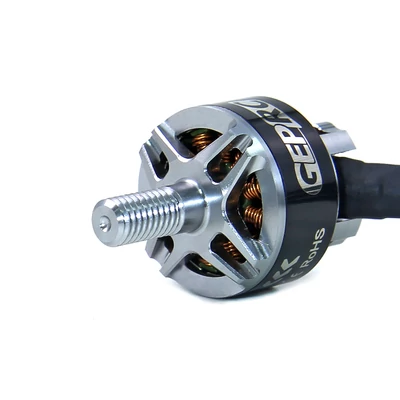

GEP-GR1507 3200KV motor
Ár:
6.290 Ft
5.090 Ft
Kedvezmény:
1.200 Ft
Kedvezmény:
19%
| Gyártó: |
|
| Cikkszám: | GEP-GR1507_3200KV |
|
|
|
| The GEP-GR1507 will bring greater efficiency and explosive power to the 3-inch and 4-inch models. Extending the efficient cooling profile of 1507 increases the cooling performance of the motor by 20%.Using 7075 aviation aluminum material to maintain the impact resistance of the motor, N52H tile magnet, Japan NSK bearing, quality assurance.3 KV values:3200KVThe GR1507 will be a new choice for the 3-inch and 4-inch models. | |
Leírás
- Lightweight base design, powerful power output
- Beautiful appearance design, high – efficiency air – flow heat dissipation, strong structure
- The whole fuselage is high-precision CNC processing; the aviation aluminum alloy is 7075 aluminum materials, which is high precision and high intensity
- It adopts N52H magnet, which ensures the torsion, high temperature resistance and no dropping magnet
- The effort and thrust is the best aiming at the accelerator from 50% to 90%
- The fuselage is handled with precise dynamic balancing to ensure the vibration and low noise when the electrical machine operates with high speed
- Japanese NSK bearing ensures the smooth operation of the electrical machine
- Tile shape magnet and 0.15mm air cleft, the power take-off is stronger
- Benign design of heat radiation structure, the temperature reduces 20% compared with the electrical machine in the same type
- Reliable magnetic circuit optimization and maximum electric power conversion
- The weight is 15.8g only (not include the wire)
Paraméterek
| motor állórész átmérője | 1507 |
| Támogatott cellaszám | 2-4 cellla (7.4V-14.8V) |
| Súly | 15,5 g |
| Propeller felfogatása | 5mm tengely |
POPO kompatibilis
|
nem |
| Configuration | 12N14P |
| Stator Diamter | 15mm |
| Stator Length | 7mm |
| Shaft Diameter | 2mm(Hollow) |
| Motor (Dimension(Dia.*Len)) | Φ 6*29.1mm |
| of Cells(Lipo) | 2~4S |
| Internal Resistance | 96mΩ |
| Max Current(180S) | 29.21A |
| Rotor | N52H arc magnets |
| Bearings | NSK |
| Base casing | Al 7075 |
| Wire AWG | 24AWG |
| Weight(g) | 15.5 |
Csomag tartalma
- 1x 1507 motor
Vélemények
1 értékelés
Írja meg véleményét!
Ákos
|
Igazolt vásárlás
2024. 10. 27.
Kiváló, erős motor, jó árban! Másnapra megkaptam a Garázsból, respekt a gyors szállításért!
Egy cinewoopra szereltem fel és ez sokkal halkabb mint a korábbi eachine motor, pedig picit melegedett. Kis pideléssel egyáltalán nem melegszik 15 perc repülés után sem.
Excellent, powerful motor at a good price! I received it from the Garage the next day, respect for the fast delivery!
I installed it on a cinewoop and it is much quieter than the previous eachine motor, although it got a little warm. Even after 15 minutes of flying, it doesn't get hot at all with a small drink.
Egy cinewoopra szereltem fel és ez sokkal halkabb mint a korábbi eachine motor, pedig picit melegedett. Kis pideléssel egyáltalán nem melegszik 15 perc repülés után sem.
Excellent, powerful motor at a good price! I received it from the Garage the next day, respect for the fast delivery!
I installed it on a cinewoop and it is much quieter than the previous eachine motor, although it got a little warm. Even after 15 minutes of flying, it doesn't get hot at all with a small drink.
